Which Tool Can Be Used to Detect the Chord Length, Thickness and Other Dimensions of Magnetic Tiles?




In industrial production, dimensional inspection is a very important part. For small parts such as magnetic tiles, their size has a great impact on the performance and quality of the product. Accurate measurement of the chord length, thickness and other dimensions of the magnetic tiles requires the use of professional tools for testing. There are various types of testing tools on the market, so what should you choose? What kind of tools can complete measurement tasks with high speed and high precision?

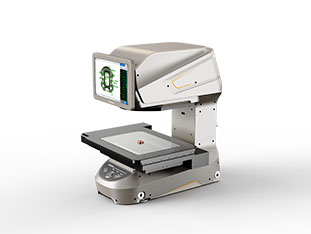

IMAGE3 image size measuring instrument is a high-precision dimensional inspection equipment widely used in industrial production. For small parts such as magnetic tiles, using optical lenses and industrial cameras to capture product images can clearly show the shape of the object, allowing for accurate size measurement.



In addition to measuring the chord length, thickness and other dimensions of magnetic tiles, the image measuring instrument can also quickly detect dimensions such as angle, radian, and axial length at the same time. The image measuring instrument has the following advantages in magnetic tile size measurement:


1. The image measuring instrument has high-precision measurement capabilities, with a measurement accuracy of ±2μm, which is more accurate than traditional measurement methods.



2. Automatic operation without manual intervention to avoid the influence of human factors on the measurement results.



3. The measurement speed is fast and the measurement range is large. It can detect the chord length, thickness, angle and other dimensions of multiple magnetic tile parts at the same time, effectively improving production efficiency.



4. Data visualization, inputting tolerances, automatically judging whether the size of the magnetic tile is qualified or not, making it convenient for users to intuitively understand the size parameters, effectively reducing the misjudgment rate and improving the accuracy of measurement.


The application of image measuring instruments in the size measurement of magnetic tile parts can not only improve measurement accuracy and production efficiency, but also reduce labor costs and misjudgment rates. It is a very practical measurement tool.
