0.16X & 0.7X, Max. sensor size 1", WD 120mm, F.No. 6&8, C-mount. Double Magnification Bi-Telecentric Lens.

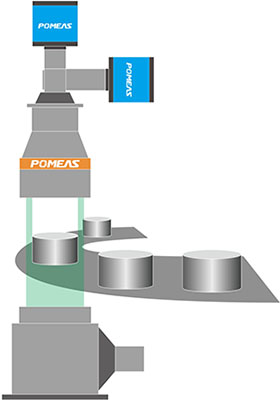

Support two camera working at the same time, two magnifications output to meet different measurement requirement, specially develped for measurement of large objects.
This Double Magnification Bi-Telecentric Lens, 0.16X & 0.7X, Max. sensor size 1", WD 120mm, F.No. 6&8, C-mount.
1. Double port, bi-telecentric, almost without deviation when used for measurement.
2. Big FOV and high resolution design, can achieve complete inspection at one time for large objects.
3. Low distortion and deep DOF design.
Can be applied in high precision measurement of large objects and machine vision industry.

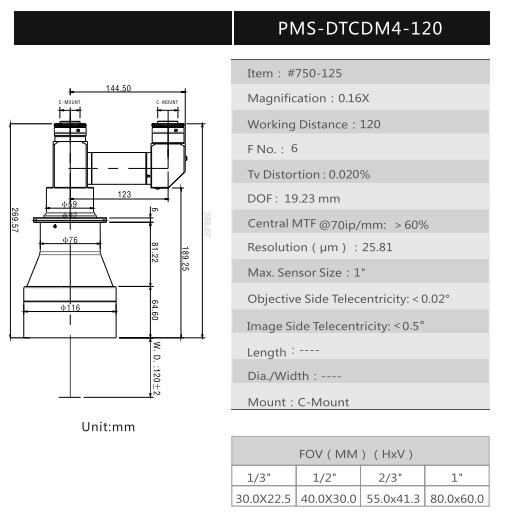

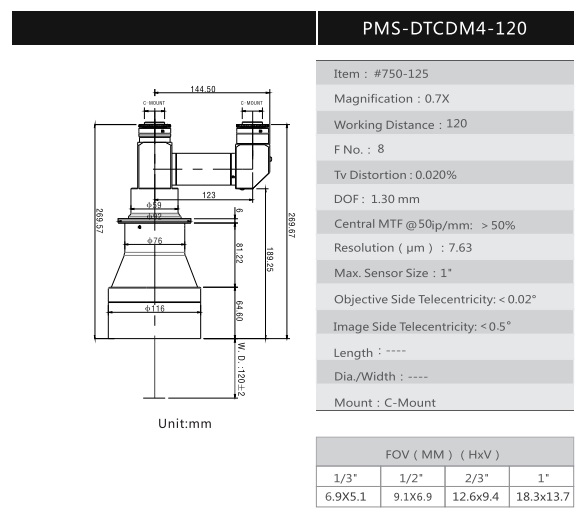

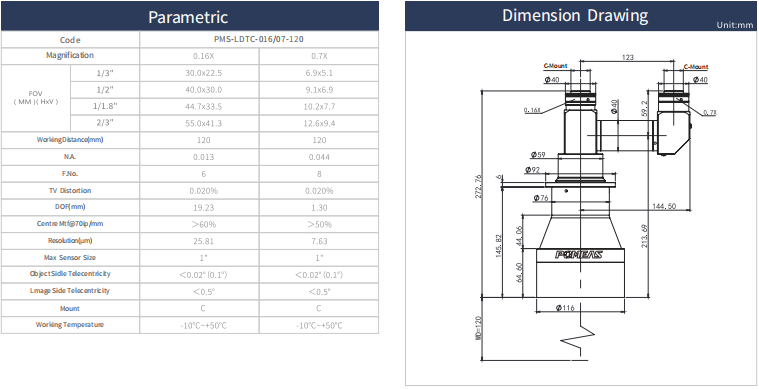

Product Size Display

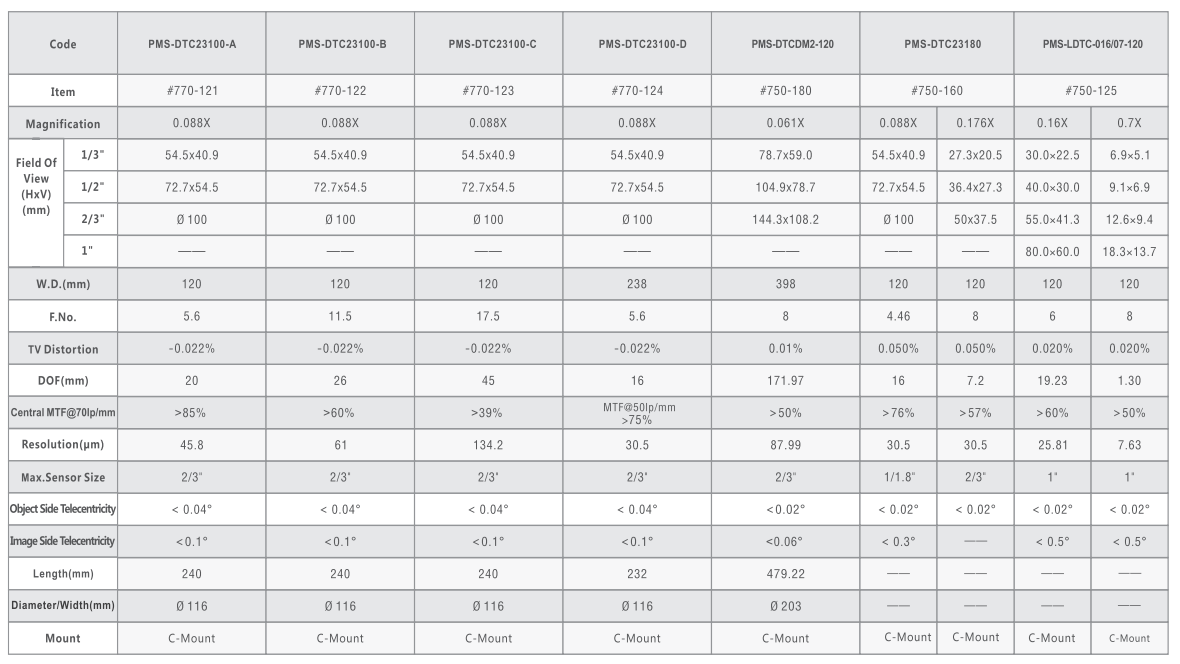

Bi-Telecentric Lens Parameter Table
