PMS-0206TF468

F Mount Big FOV Telecentric Lens 0.206X, Max. sensor size 35mm film, WD 468mm.

Optics General Catalog

  • Download now





    Product Introduction

    ——



    F mount telecentric lenses are specially design for 10MP grade resolution full frame sensor.

    Designed for full-megapixel full-frame sensor, large detection field of vision, ultra-low distortion design



    This F Mount Big FOV Telecentric Lens 0.206X, Max. sensor size 35mm film, WD 468mm.









    Products Advantage

    ——



    1. Super big FOV,  high-resolution bi-telecentric design which is specially design for precision measurement of large objects.

    2. High telecentricity calibration, test reult will be the same within DOF.

    3. Super low distortion design, the FOV tolerance is small (before calibration by software), after increase the FOV.

    4. Simple and stable mechanical design, suitable for all kinds of industry environment.







    Actual Image

    ——







    Application Fields

    ——



    Widely used in a variety of large-size objects of high-precision measurement, such as large-size mobile phone screen,

    PCB board, flat glass, engine parts, air conditioning compressor parts etc.

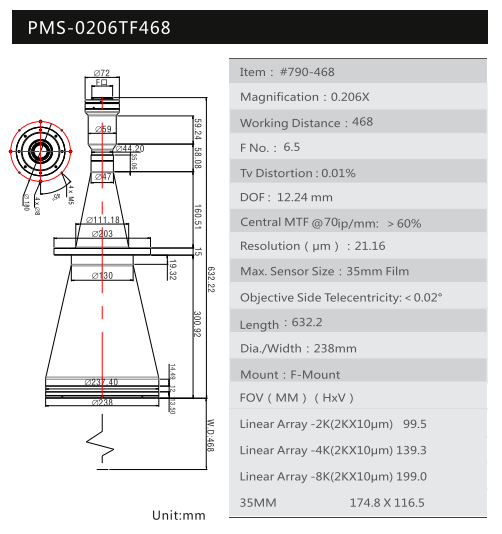

    Product Size Display

    ——

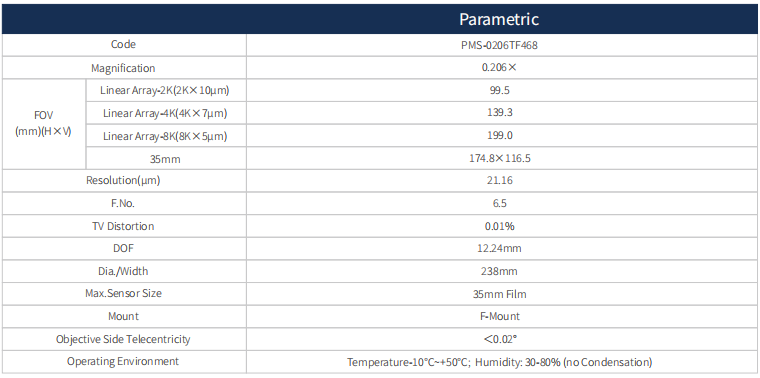

    F Mount Telecentric Lens Parameter Table

    ——
