6.5X Motorized Zoom Lens with Coaxial Illumination and 12mm Motorized Fine Focus, 6.5:1, 0.7X-4.5X, Max. sensor size 2/3", WD 87±2mm.
With professional optical design, the perfect combination of high resolution and big magnification ratio, the most universal zoom lens is widely used in various industry application.
This 6.5X Motorized Zoom Lens with Coaxial Illumination and 12mm Motorized Fine Focus, 6.5:1, 0.7X-4.5X, Max. sensor size 2/3", WD 87±2mm.
1. Professional optical design, optical magnification 0.7x-7.5x, magnification ratio 6.5:1.
2. Big FOV application, based on 2/3" camera.
3. Compact structure, easily for assembly and installation.
The integrated motorized control systems are suitable for all the POMEAS zoom lenses.
Motorized controlling system can control single or dual channels via RS232 or USB.
SKD software will be provided.
Widely used in industry inspection, automation, electronic communication, semiconductor, scientific research, etc.

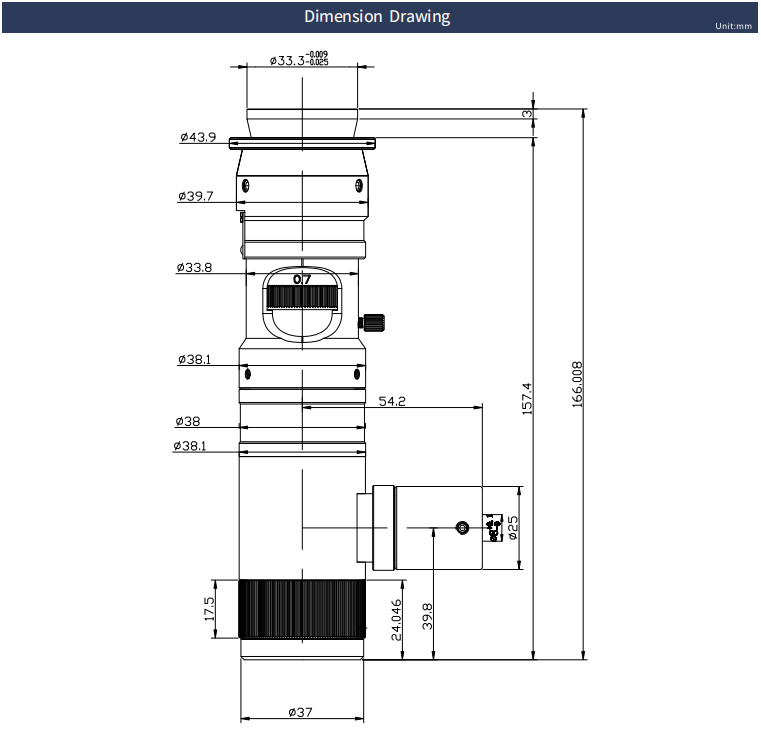

Product Size Display

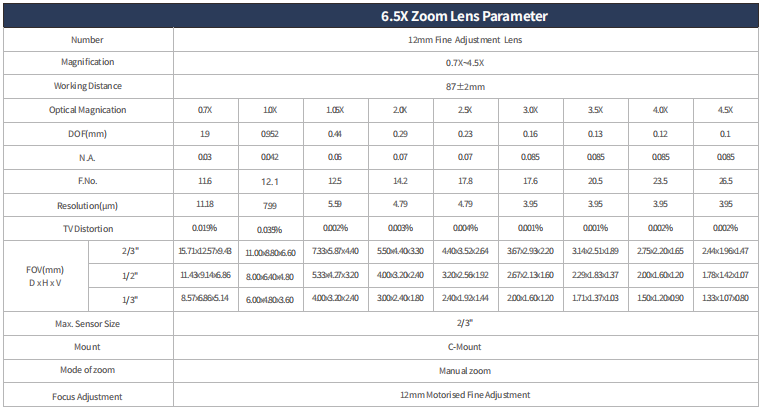

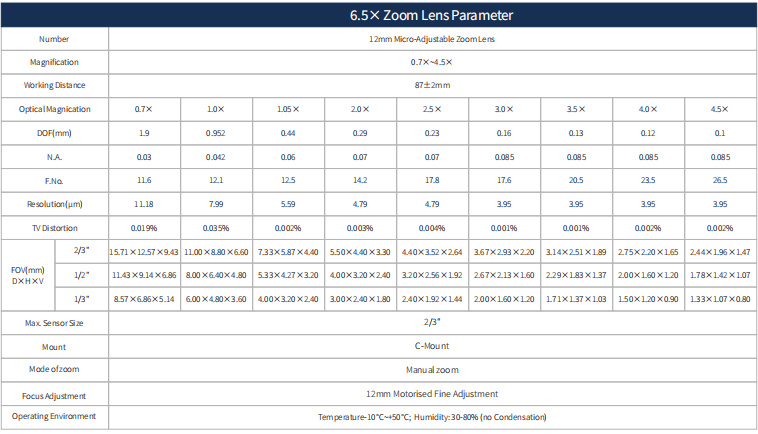

6.5X Continuous Zoom Lens Parameter Table
6.5X Continuous Zoom Lens Selection Diagram
6.5X Continuous Zoom Lens Fov Table
