High precision quick measurement instrument controller PMC-X4 series

Compact structure, high positioning accuracy and fast speed;With 2D space interpolation motion function, excellent motion control capability to ensure high stability motion

Optics General Catalog

  • Download now

    Products Advantage

    ——



    1. Compact structure, high positioning accuracy and fast speed
    2. With full closed-loop position control function to achieve accurate control of the end position of the structure
    3. With 2D space interpolation motion function, excellent motion control capability to ensure high stability motion
    4. Real-time adjustable motion feed rate function, convenient to adjust the motion speed at any time
    5. 100M Ethernet communication interface, short delay, stable work
    6. Adopt s-type flexible acceleration and deceleration design to reduce the oscillation shock caused by motion start and stop
    7. Real-time adjustable motion feed rate function, convenient to adjust the motion speed at any moment.
    8. Ergonomic design of the handpiece, easy to operate, intuitive and simple, robust and durable











    Application Fields

    ——



    It is widely used in electronics, semiconductor, panel, equipment and other industries. Measure the height, segment difference, thickness, flatness, and the profile of glass, ceramics, and mirror metal, such as mobile phones, PCB, toughened glass screen protective films, and semiconductor chips.

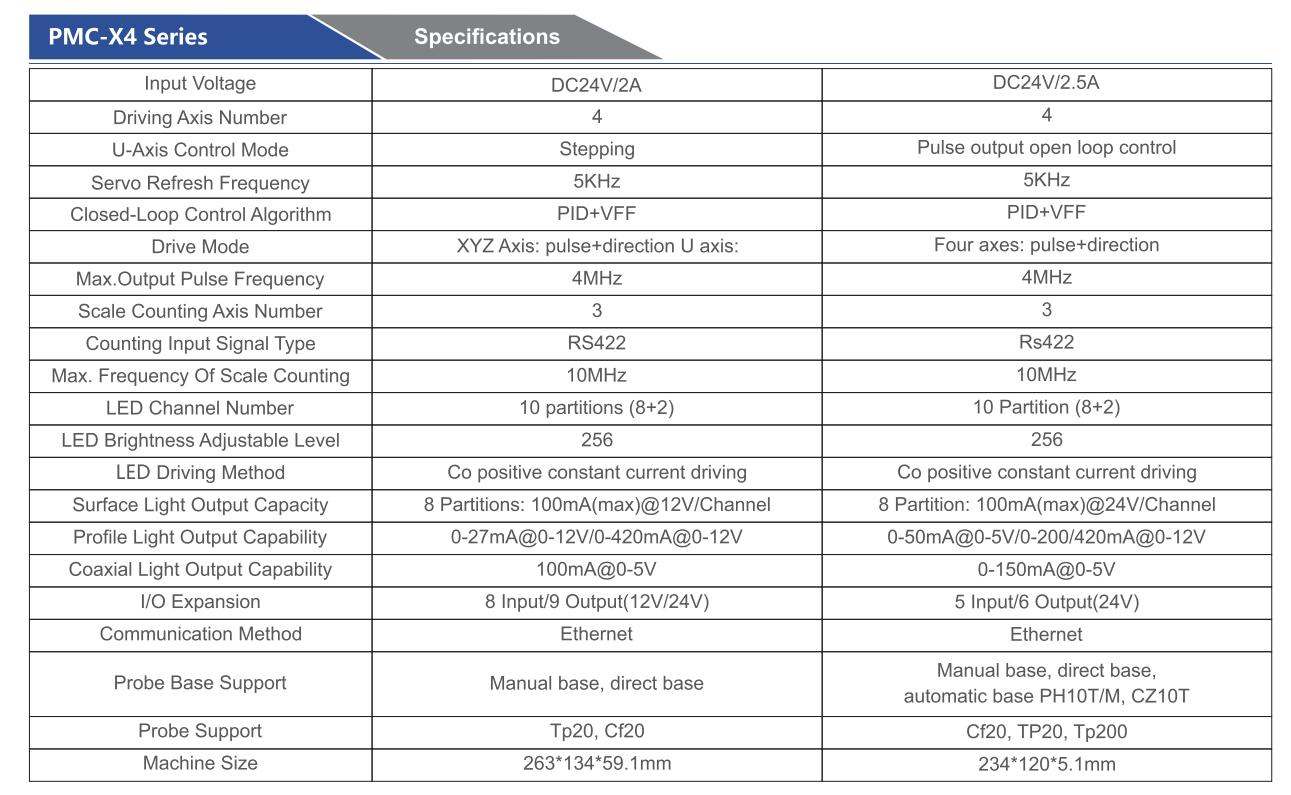

        Specifications

        ——
