Flat Illumination, with High density Led, even light for partial and whole area. Usually used for outer shape inspection

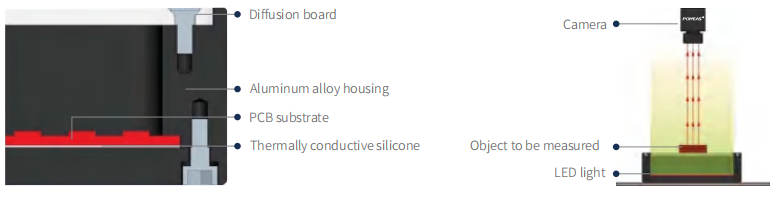

The Flat light source is a plane illumination. The LED is evenly distributed at the bottom of the light source after structural optimization, and forms a uniform illumination light on the surface after being diffused by the diffuser plate.
The light source brightness can be increased by 20% to 50%, which is superior to other similar light sources in the market.
It is usually used for contour detection.
• Profile measurement.
• Detection of scratches, stains or internal foreign matters and damages on the surface of transparent objects.
• Dimension measurement.
• Broken glass bottles, foreign matter detection.

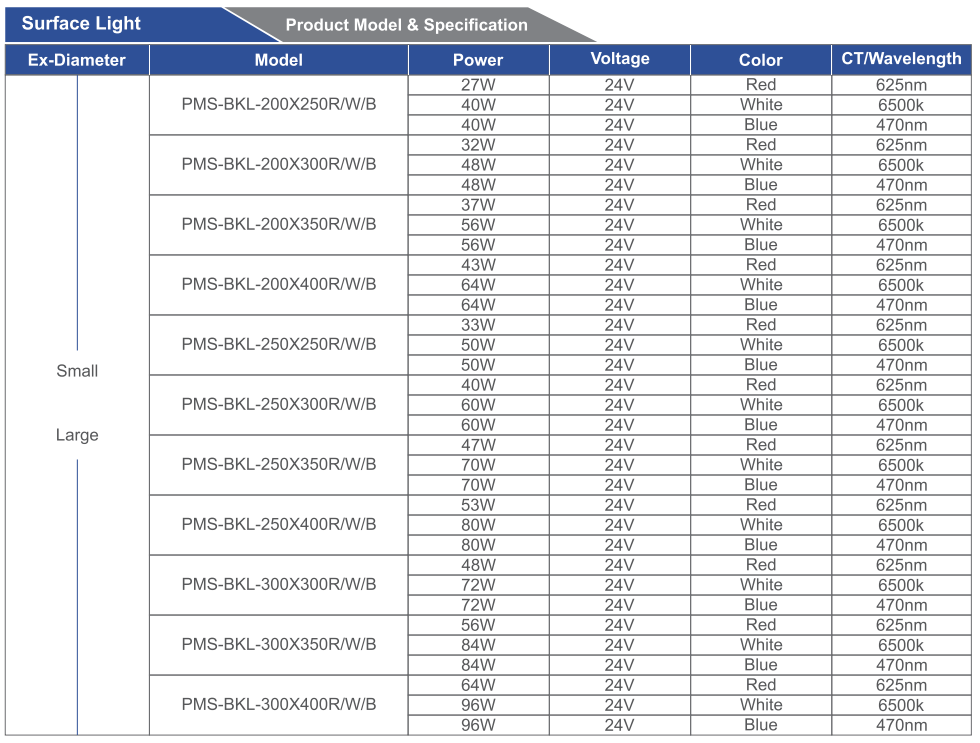

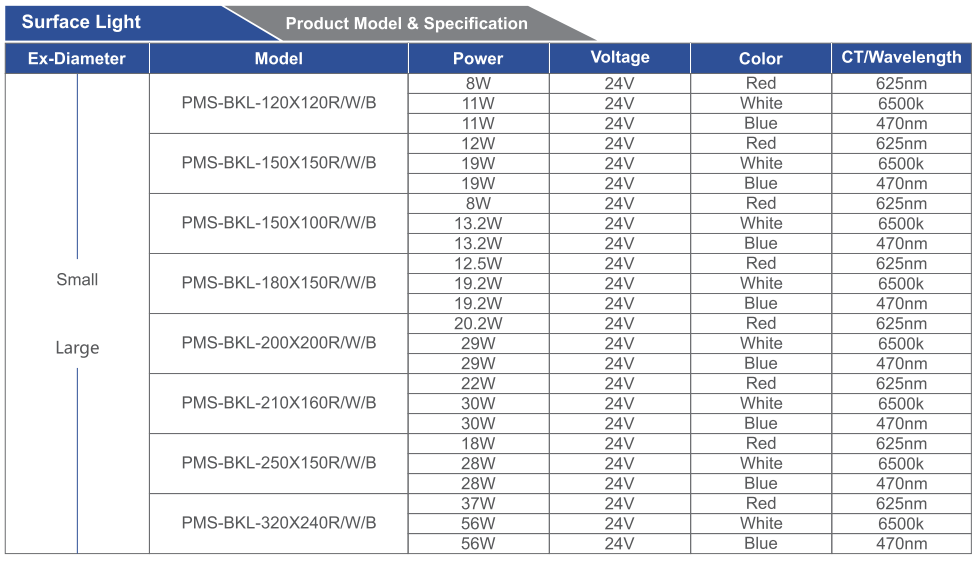

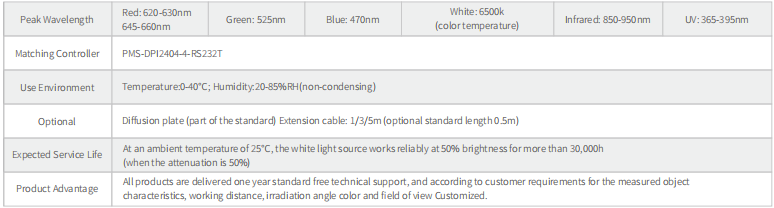

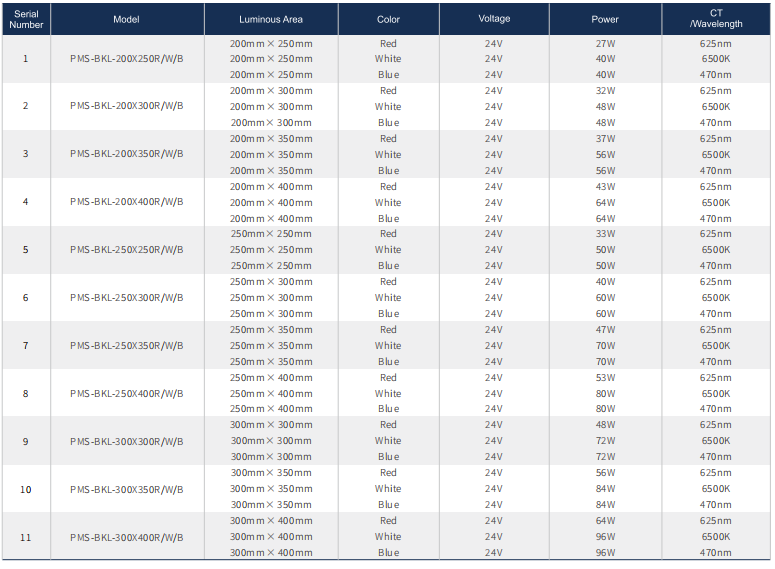

Product Model & Specification

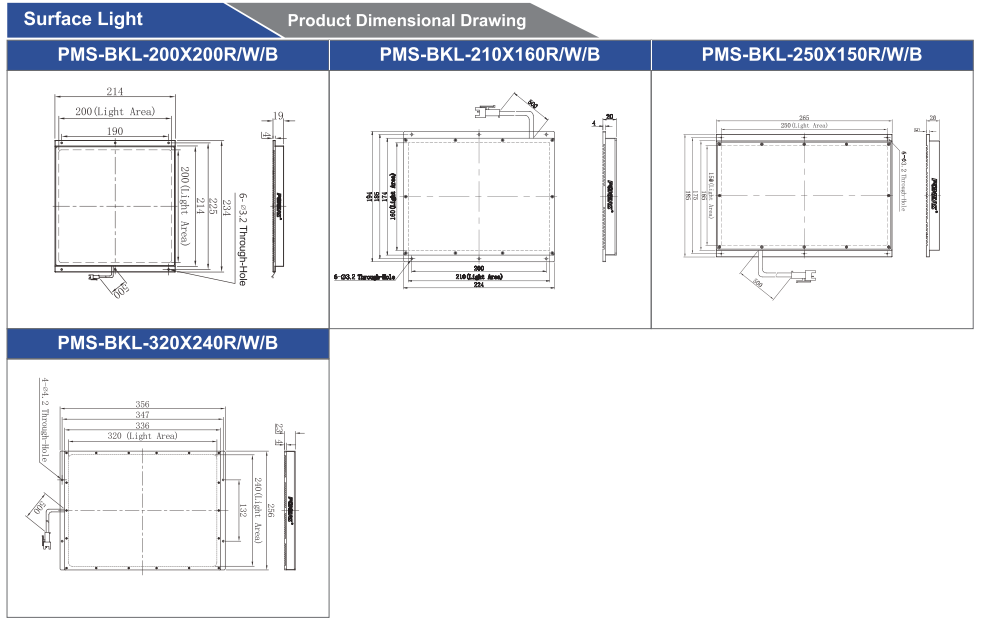

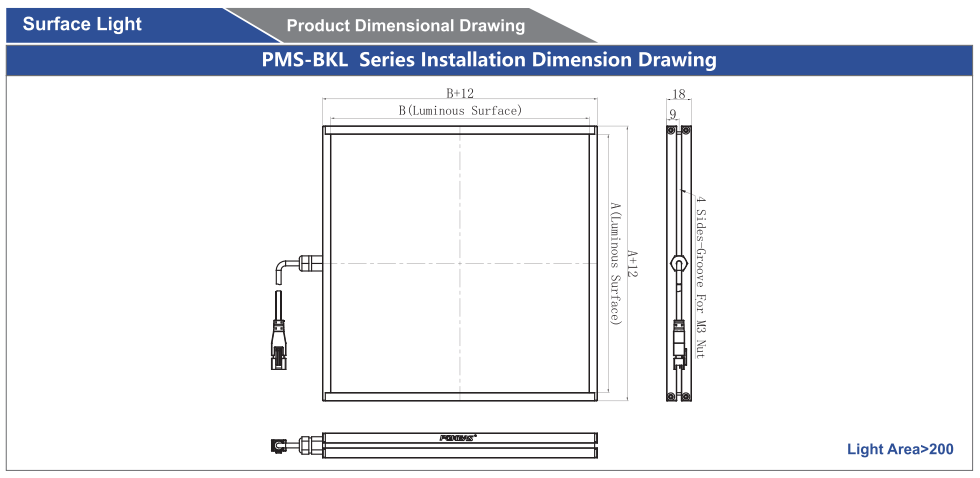

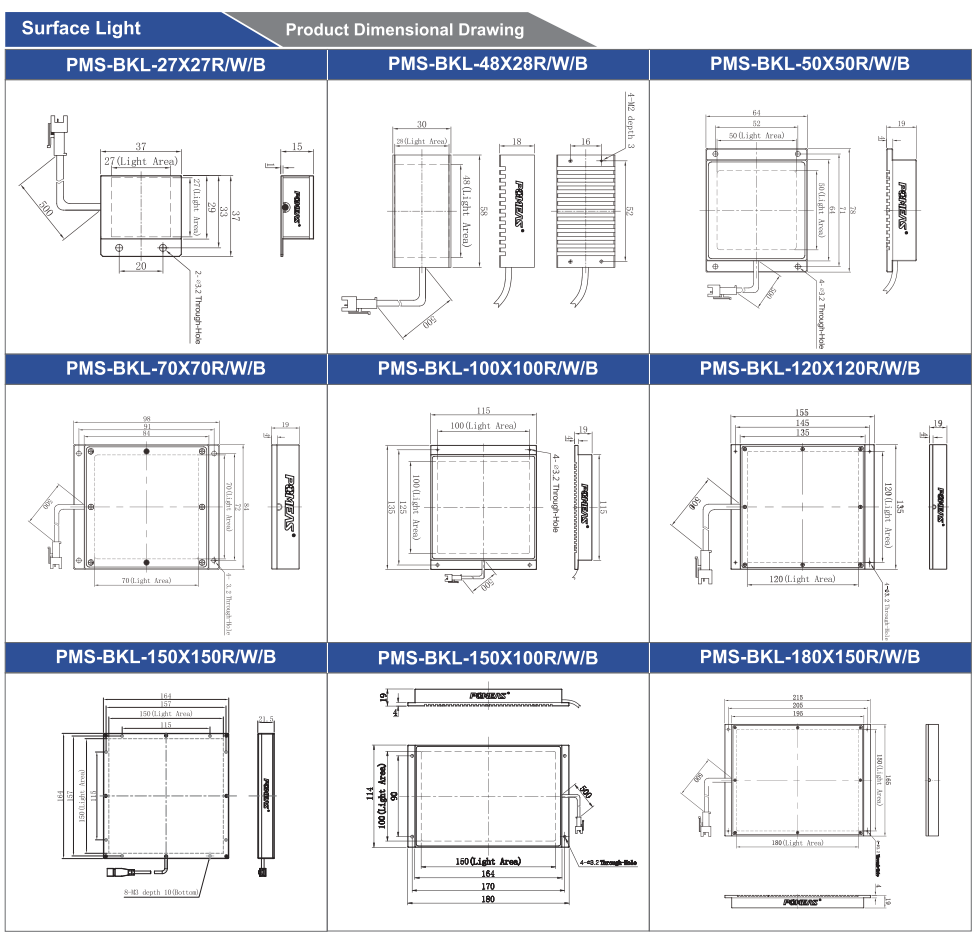

Product Dimensional Drawing
