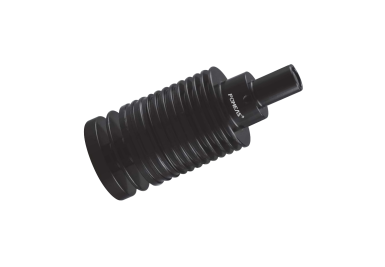

PSW-PI350-6-R/G/B/Y/W

PSW-PI350-6-R/G/B/Y/W

Point Illumination, Large Power LED, small size, high bright light, suit for coaxial light.

Optics General Catalog

Download now

Products Advantage
——

1、 Large Power LED, small size, high bright light

2、 High efficiency heat dissipation device, improved light lifetime

3、 Compact size, easily for assembly

4、 Halogen’s replacement, especially suitable for lenses’ coaxial light

Actual image
——

Application
——

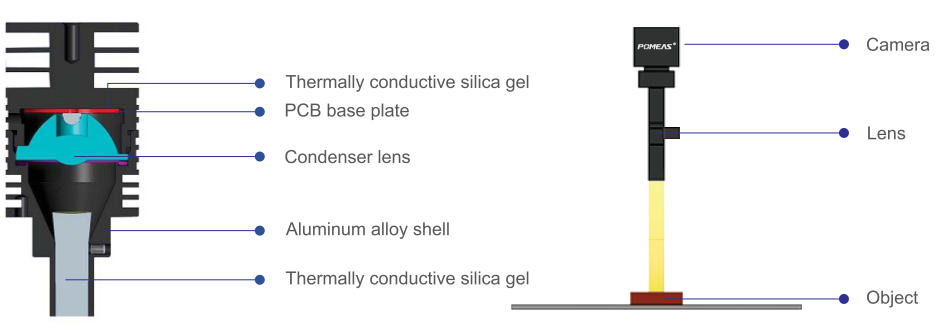

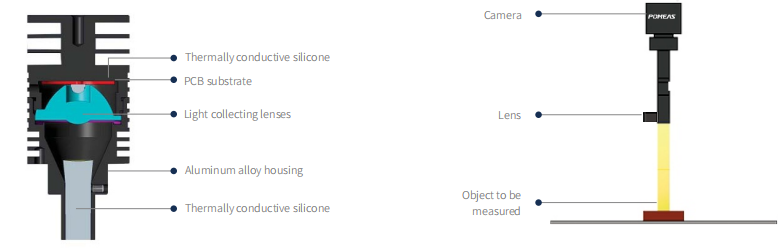

1. Suitable for coaxial light.

2. Used to measure high reflective or mirror surface.

3. For LED circuit board, scratched line, surface crack inspection.

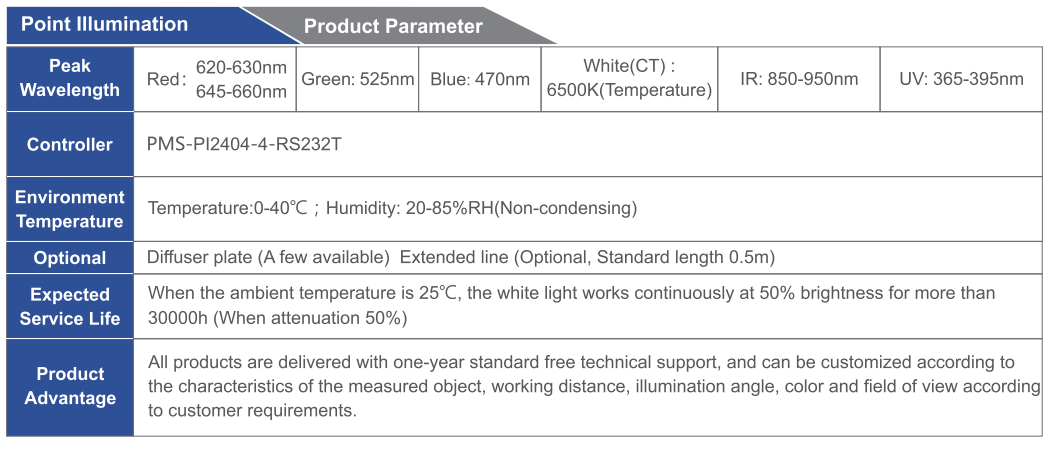

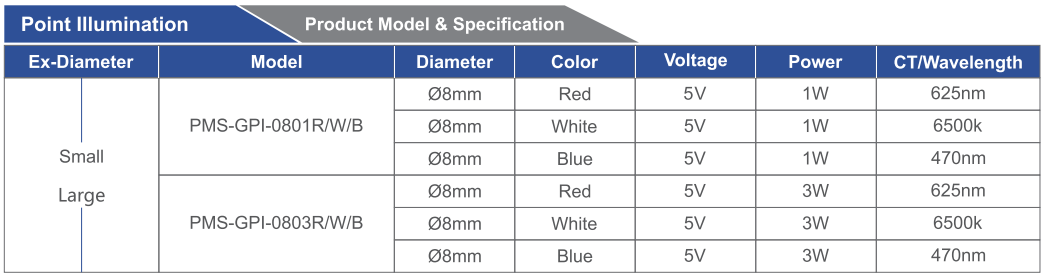

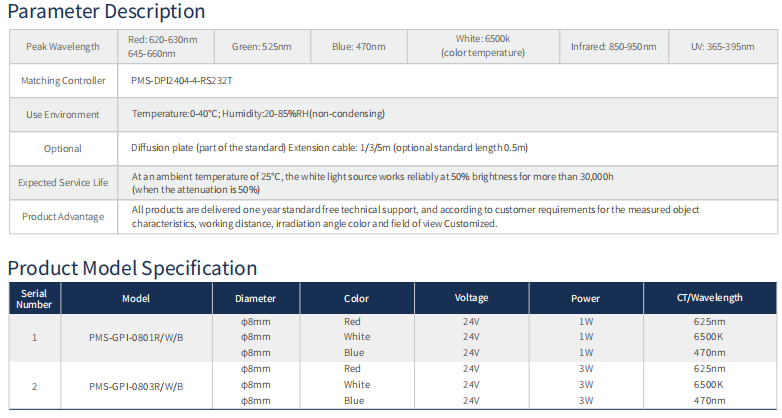

Point Light Parameter
——

Point Light Parameter.png

PMS-AT0.5

PMS-IC02

PMS-LA6.5-0.25
