Shadowless Ring Light Source

High brightness,no opposite angle shadow,ring light with multiple colors.

Optics General Catalog

  • Download now



    Product Introduction

    ——



    High brightness,no opposite angle shadow,ring light with multiple colors.









    Product Advantage

    ——



    The bright LED of the ring-shaped shadowless illumination is formed by the structure optimization design array.

    After the light passes through the special diffusion plate, a uniform illumination area is formed directly below.







    Illumination Structure

    ——







    Application Fields

    ——



    • High reflection uneven surface defects.
    • Defect of cans detection.
    • High brightness IC plastic packaging screen printing detection.
    • Medical medicine aluminum foil packaging inspection.
    • Smooth metal mobile phone shell character detection.

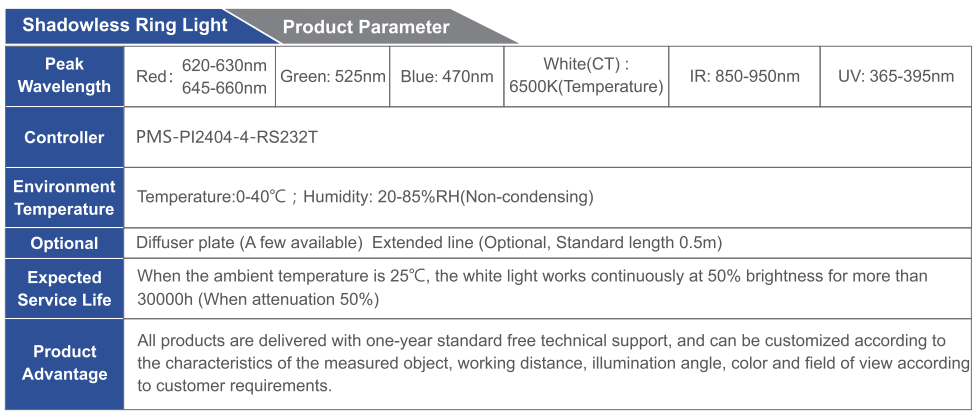

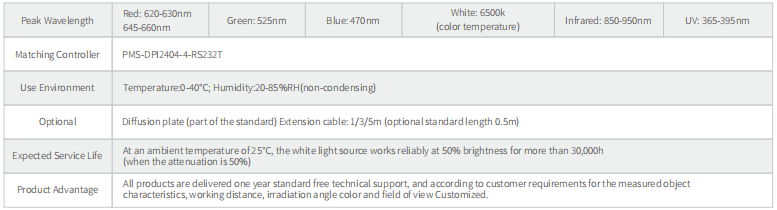

     Shadowless Ring Light Source Parameter Table

    ——

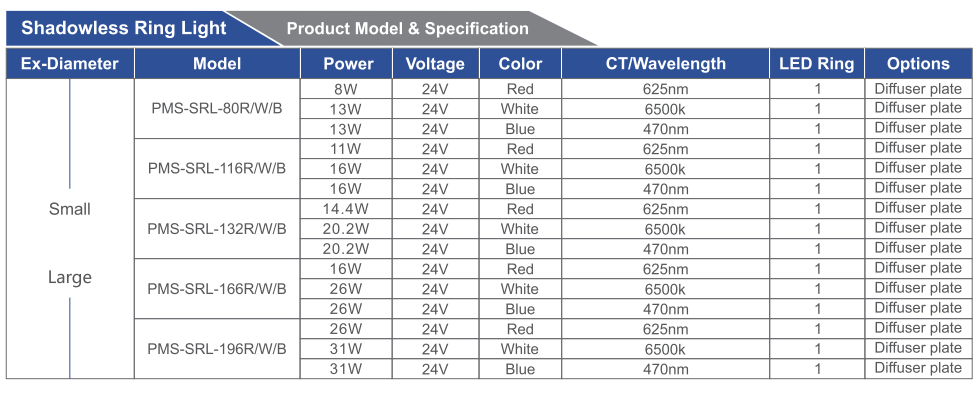

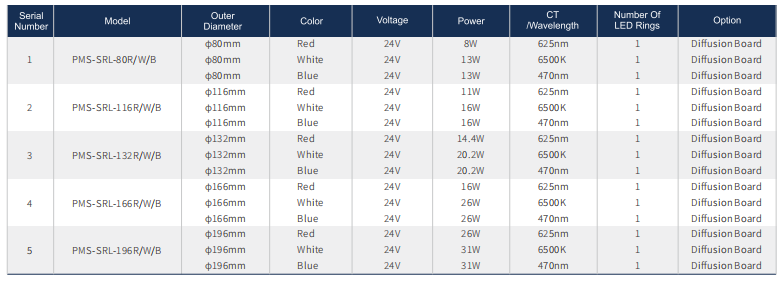

    Shadowless Ring Light Source Model & Specification

    ——

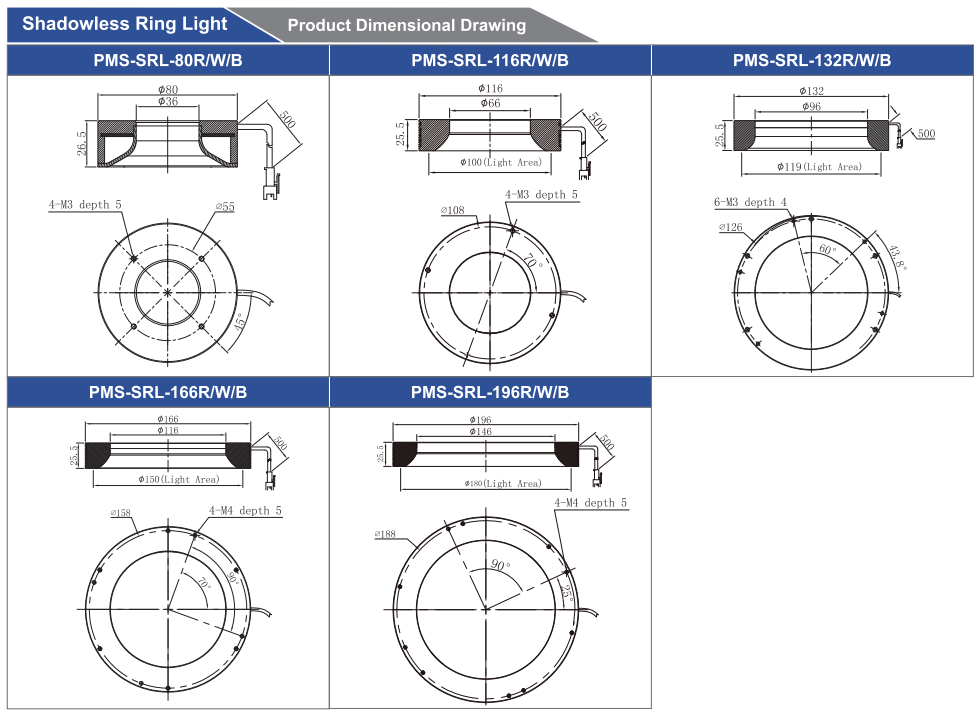

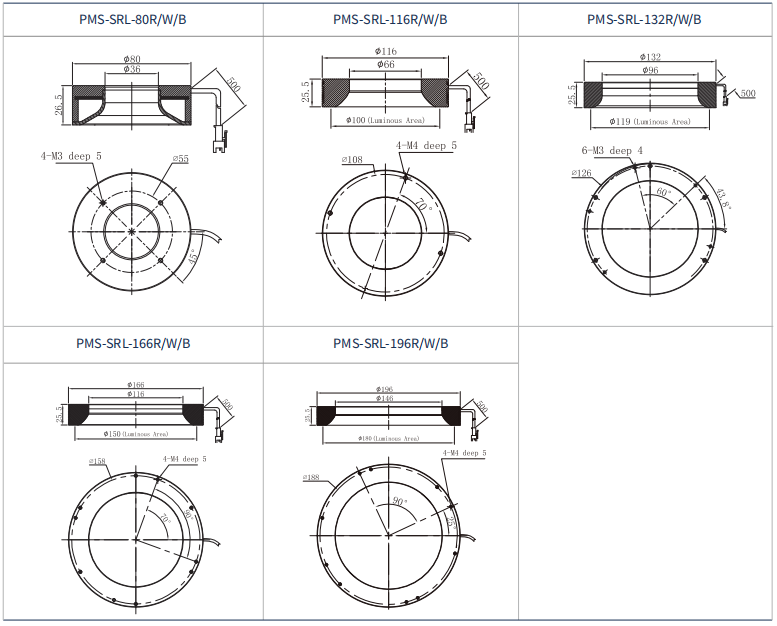

    Shadowless Ring Light Source Dimensional Drawing

    ——
