3DOS-D System

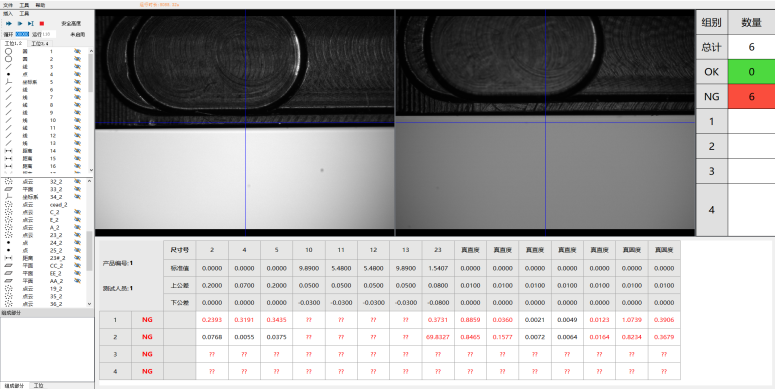

With the POMEAS 3DOS-D system, the data corresponding to the detected good and defective products are recorded, and the data can be saved automatically and stored in the industrial control machine

Optics General Catalog

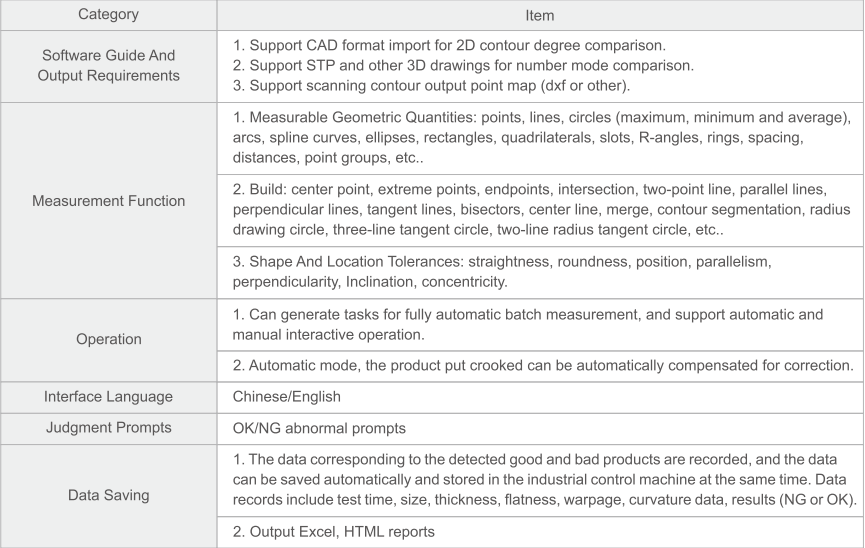

3DOS-D System Introduction

——





3DOS-D System Feature

——

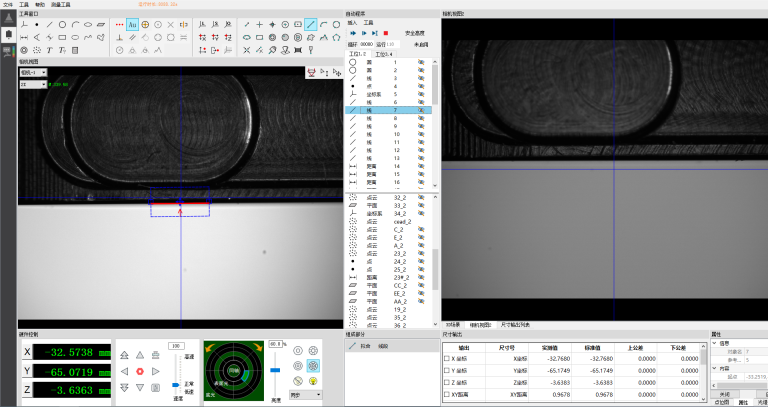

1.Multi-station multi-threaded parallel,greatly improves the measurement efficiency.

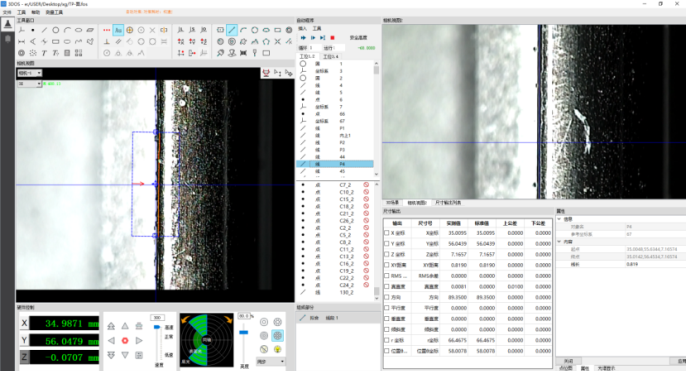

2.Support duplex edge-finding                                        3.Support for fine-tuning any work-station program,                     4.A variety of dimensions and tolerance calculation output,

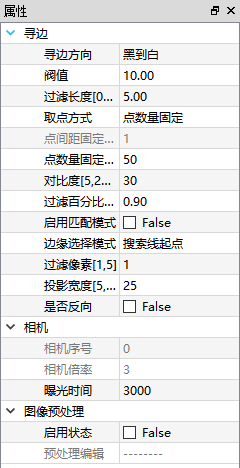

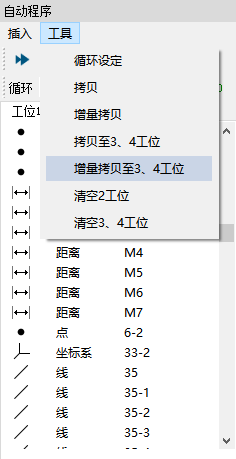

and picking point tools synchronized copy,                                       higher flexibility.                                                                       the real online production support tools;

doubling the programming efficiency.

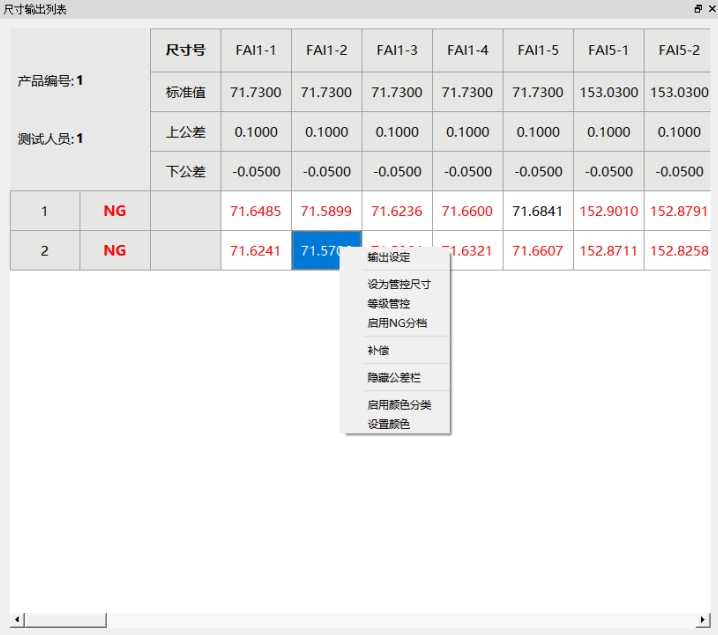

 the real online production support tools;





5.Supports two modes of programmer/operator,avoiding misoperation and lowering the threshold of production line use.
