How to measure flange size efficiently and accurately?

share:

2022/07/11

author:adminBOSS

Flanges are widely used in machinery, mainly for the connection of equipment parts. In order to ensure the tightness of the connection, the flange plate needs to be accurately dimensionally inspected during production to ensure that the product quality is no problem.





Measurement requirements:

Measure flange inner diameter, outer diameter, hole diameter, hole spacing and other dimensions.





solution:

Using POMEAS IMAGE3 image size measuring instrument, one-key start, automatic identification and measurement, can solve the problems of low accuracy and poor consistency of traditional manual measurement, fast measurement speed, results in seconds, can complete the flange size with high precision and high efficiency Measurement.

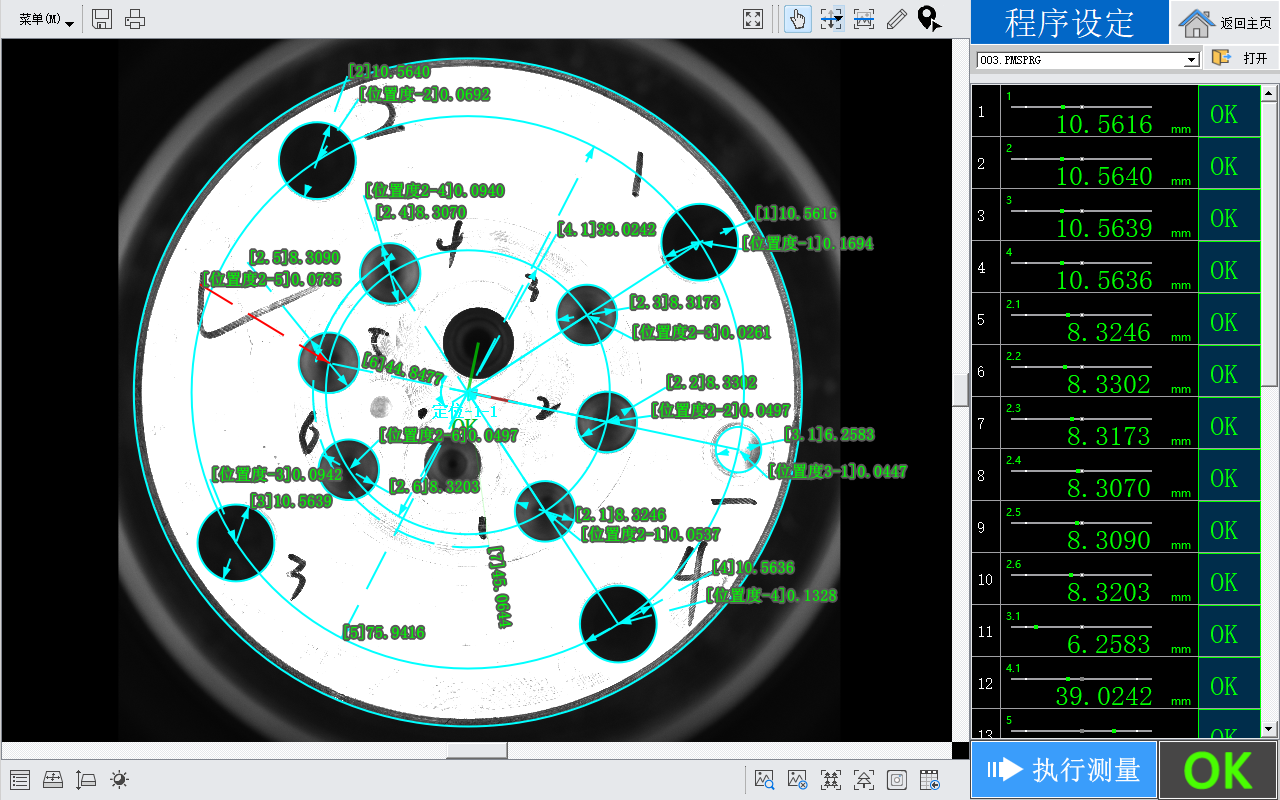

Detecting renderings:



The advantages of IMAGE3 image measuring instrument:



1. The image measuring instrument adopts optical non-contact measurement technology, magnifies the product image to measure multiple dimensional features, and quickly outputs the measurement results.



2. Using a double telecentric high-resolution optical lens, it is not affected by high and low focal lengths, and the image is clear and low distortion. The product image can be truly restored, with small measurement error and high precision.



3. The image measuring instrument has a large measuring range, can detect the size of workpieces in batches, is simple to operate, saves measuring time, and greatly reduces production costs.



4. The image measuring instrument will not be affected by the direction and angle of placing the product, it will automatically identify the measuring part of the product, and anyone can obtain accurate and consistent results when measuring.





IMAGE3 image measuring instrument is a good choice for the dimensional measurement of precision screws, precision springs, mobile phone glass, mobile phone back covers, watch parts, auto parts, precision hardware accessories, etc. It can greatly simplify the measurement process. Increase productivity.
