Image Measuring Instrument Application for IC Lead Frame Size Measurement

share:

2023/11/22

author:adminBOSS

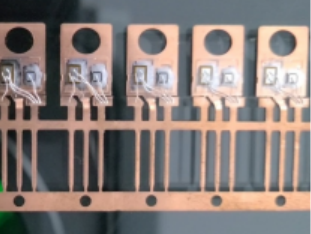

Lead frame is an important basic material in the electronic information industry. It uses gold wire, aluminum wire, copper wire and other materials to achieve electrical connections and is the chip carrier of integrated circuits. Due to the continuous development of processing technology, lead frames are developing towards high precision, and their dimensional quality control requirements are also getting higher and higher.





Lead frames have the characteristics of multiple sizes, high precision, and small products, and require efficient and high-precision testing equipment to meet testing needs.POMEAS IMAGE3 MAX image measuring instrument is a high-precision dimensional measurement equipment that can simultaneously measure plane dimensions and some 3D dimensions, based on POMEAS' years of optical detection and image processing technology. Equipped with a point spectrum lens and self-developed measurement software, it can realize automatic measurement and automatically determine data anomalies, effectively improving the efficiency of lead frame size measurement. It is the choice of many industry customers.



What are the advantages of IMAGE3 MAX image measuring instrument?



1. Many measurement parameters



The POMEAS IMAGE3 MAX image size measuring instrument is equipped with a self-developed 8055 point spectrum sensor. In addition to measuring plane dimensions such as length, width, distance, diameter, and arc, it can also complete 3D dimension detection such as segment difference, thickness, height, and flatness.





2. Fast measurement speed



The IMAGE3 MAX image size measuring instrument has a measuring range of 300x200. It can detect one or more products at the same time. It can complete the size measurement of more than 50 products in 1 second, saving measurement time and improving detection efficiency.





3. High measurement accuracy



The measurement accuracy is ±2μm, effectively meeting the high-precision measurement requirements of lead frames. And it can effectively eliminate human errors, so anyone can get accurate and consistent measurement results.



POMEAS image size measuring instrument can complete dimensional measurements with high precision and efficiency, providing guarantee for product factory quality, reducing corporate labor costs, and increasing industry competitiveness. Customers with dimensional measurement needs are welcome to consult!
