High Resolution Telecentric Lens 0.063X, Max. sensor size 1", WD 416mm.
With telecentric light design, low distortion, high telecentricity, high DOF, suitable for defects recognition, production auto inspection field.
This High Resolution Telecentric Lens 0.063X, Max. sensor size 1", WD 416mm.
1. All using the object telecentric design, with high depth of field, high resolution, low distortion characteristics;
2. Support 1/2 '' or 2/3 '' of the target surface size camera;
3. Coaxial lighting optional, uniform lighting;
4. The standard C interface;
5. Can be used with the steering prism.
Can be used in mobile phone screen and PCB printing industries.

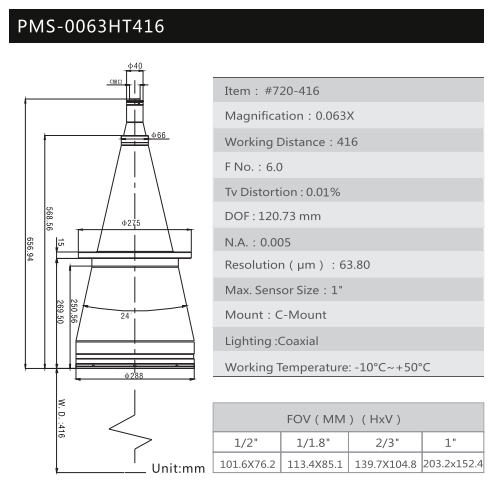

Product Size Display

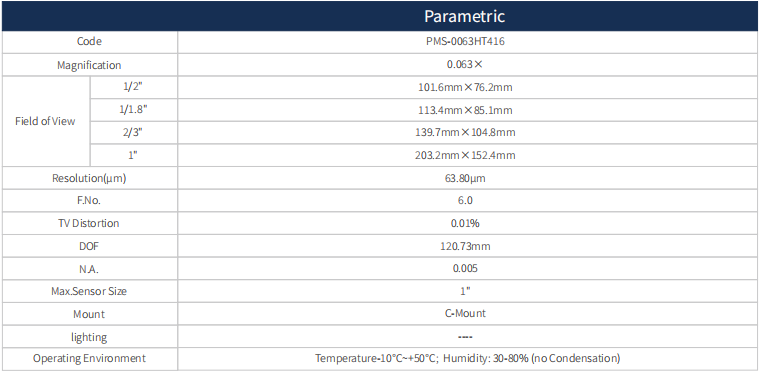

High Resolution Telecentric Lens Parameter Table
