PMS-1.5ST110

Standard Telecentric Lens 1.5X, Max. sensor size 2/3", WD 110mm.

Standard Telecentric Lens PMS-1.5ST110





Product Introduction

——



This series telecentric lens have fixed magnification and working distance. High resolution, low distortion,  super cost-effective high performance, support custom services.



This Standard Telecentric Lens 1.5X, Max. sensor size 2/3", WD 110mm.





Naming Rule
——










Product Advantage
——



1. This series telecentric lens adopts objective telecentric design, which have features of high DOF, high resolution and low distortion.

2. Support C-mount camera with max sensor size as 2/3".

3. With fixed magnification and working distance.

4. Coaxial function is optional, coaxial light is even.

5. Standard C-mount.

6. Can work with prism.







Actual image
——











Application Fields

——



Positioning inspection of mobile screen and PCB printing industry.

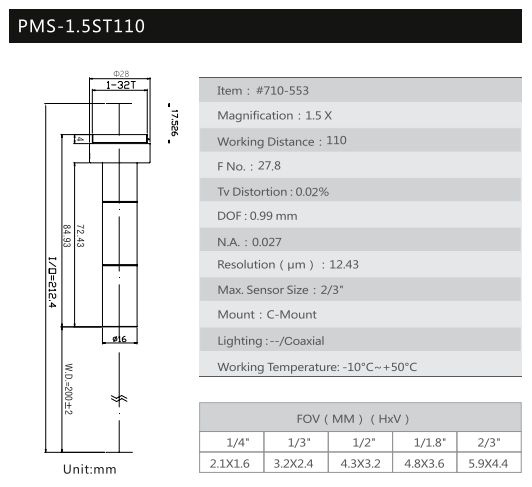

Product Size Display

——

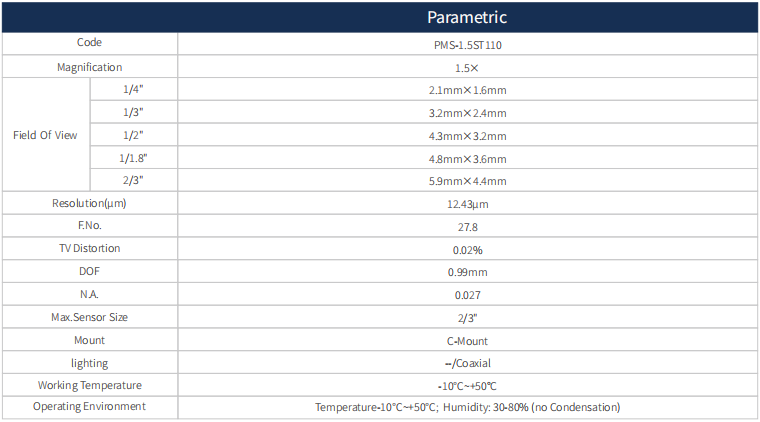

Standard Telecentric Lens Parameter

——
