12.5X Motorized Zoom Lens with Coaxial Illumination and 3mm Fine Focus, 12.5:1, 0.58X-7.5X, Max. sensor size 2/3", WD 77.4±2mm.
Super high magnification ration and excellent optical performance, used to inspect many kinds of parts.
This 12.5X Motorized Zoom Lens with Coaxial Illumination and 3mm Fine Focus, 12.5:1, 0.58X-7.5X, Max. sensor size 2/3", WD 77.4±2mm.
1. Professional optical design, optical magnification 0.58x-7.5x, magnification ratio:12.5:1
2. Excellent optical performance, high resolution, low distortion, super high N.A
The integrated motorized control systems are suitable for all the POMEAS zoom lenses. Motorized controlling system can control single or dual channels via RS232 or USB. SKD software will be provided.
Widely use for semiconductor, automation, communication fields.

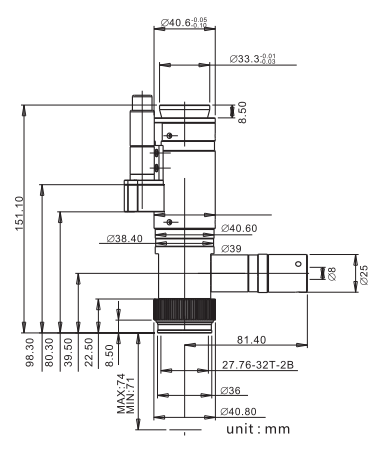

Product Size Display

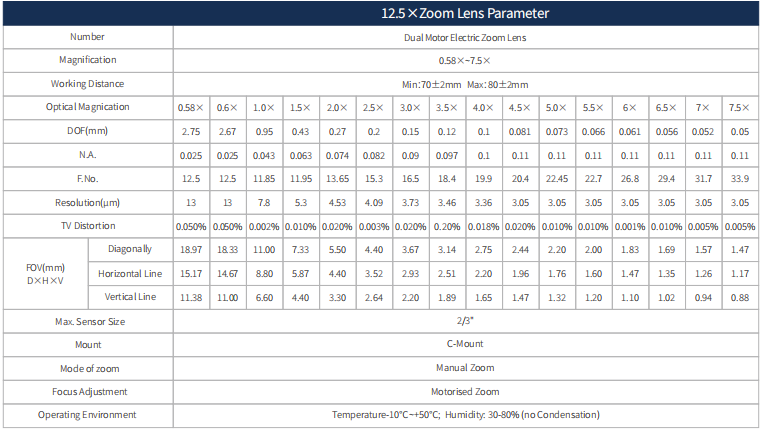

12.5X Continuous Zoom Lens Parameter Table
12.5X Continuous Zoom Lens Selection Diagram
12.5X Continuous Zoom Lens Fov Table
