PMS-Z125M-CH3

12.5X Motorized Zoom Lens with Coaxial Illumination and 3mm Fine Focus, 12.5:1, 0.58X-7.5X, Max. sensor size 2/3", WD 77.4±2mm.

Optics General Catalog

  • Download now



    Product Introduction

    ——



    Super high magnification ration and excellent optical performance, used to inspect many kinds of parts.



    This 12.5X Motorized Zoom Lens with Coaxial Illumination and 3mm Fine Focus, 12.5:1,  0.58X-7.5X, Max. sensor size 2/3", WD 77.4±2mm.







    Products Advantage

    ——



    1. Professional optical design, optical magnification 0.58x-7.5x, magnification ratio:12.5:1

    2. Excellent optical performance, high resolution, low distortion, super high N.A







    Product Function

    ——











    Motorized Controller

    ——



    The integrated motorized control systems are suitable for all the POMEAS zoom lenses. Motorized controlling system can control single or dual channels via RS232 or USB. SKD software will be provided.







    Actual Image

    ——










    Application Fields

    ——



    Widely use for semiconductor, automation, communication fields.

















    Product Size Display

    ——

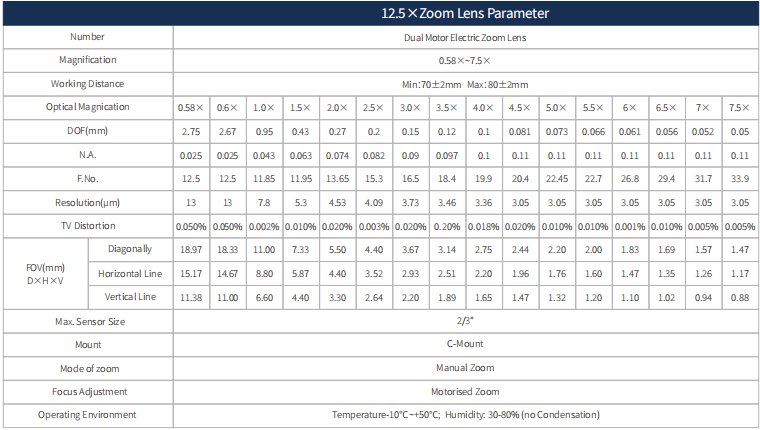

    12.5X Continuous Zoom Lens Parameter Table

    ——















    12.5X Continuous Zoom Lens Selection Diagram







    12.5X Continuous Zoom Lens Fov Table

    ——
